1PC 8pin bakelite PCB Mounting Vacuum tube socket for KT66 KT88 6SL7 6SN7 6CA7 6V6 5U4G 6J5 6J7 6L6 6SJ7 274B GZS8-F1 silver plated

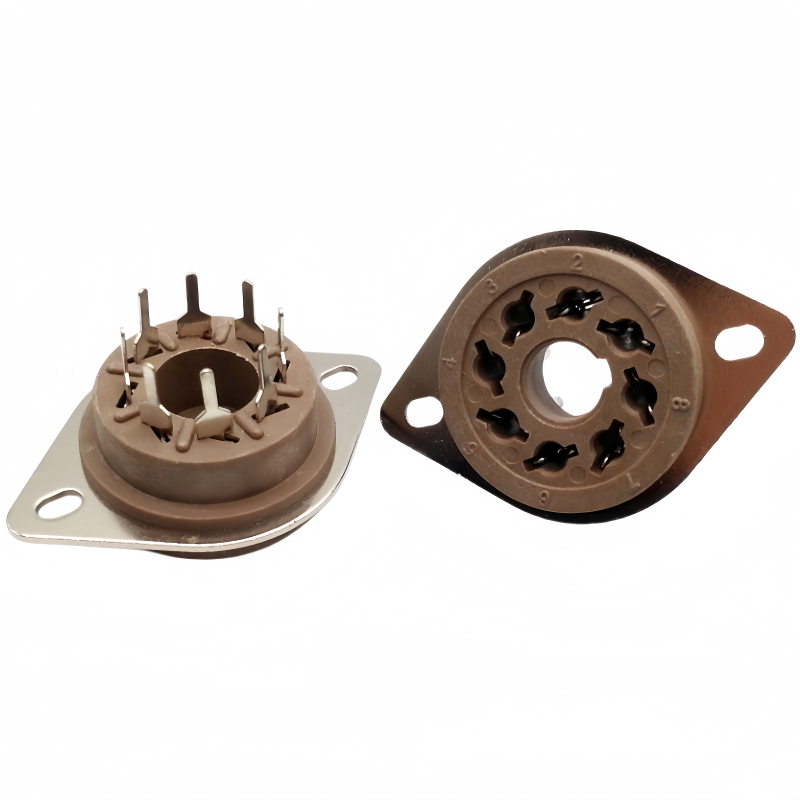

Brand New Bakelite 8-Pin Octal Vacuum Tube Socket

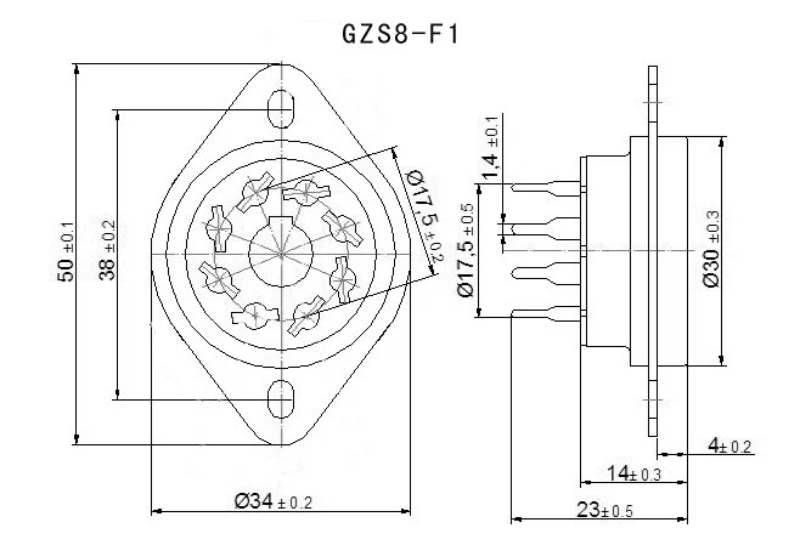

Mounting frame overall length: 50 mm Screw mounting hole diameter: 38 mm

Socket bottom diameter: 20.5 mm
Socket top diameter: 30 mm

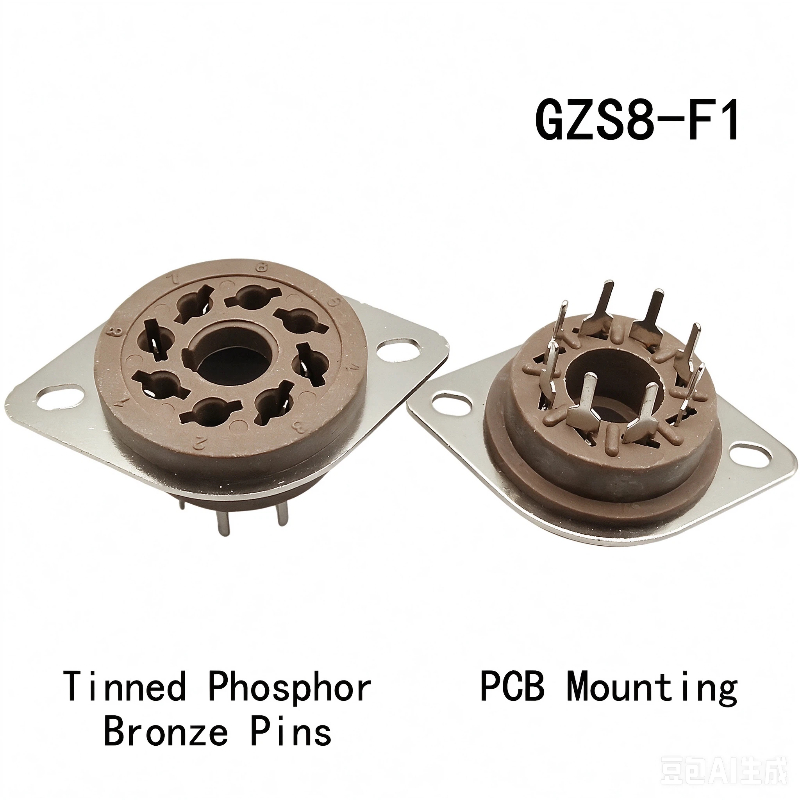

GZS8-F1: Silver-plated phosphor bronze pins, PCB mount type

High-temperature resistant ABS insulating base with phosphor bronze contacts. Designed for PCB installation, fitted with a mounting bracket. It fastens the socket tightly to the panel and avoids damage to vacuum tubes or PCBs during tube plugging and unplugging.

Compatible with large octal vacuum tubes: KT66, KT88, 6SL7, 6SN7, 6CA7, 6V6, 5AR4/GZ34, 5R4GY, 5U4G, 6AS7G, 6B4G, 6BL7GT, 6F6, 6J5, 6J7, 6L6, 6SJ7, 274B, 348A, 350B, 421A, 5691, 5692, 5693, 5881, 6336, 6550, 7199, EL34, EL37, GZ32, GZ34 and other octal tubes.

This custom octal tube socket boasts fine workmanship with smooth, burr-free surfaces. The spring clips hold tube pins with proper tension to prevent pin wear. Perfect for DIY projects, tube amp upgrades, guitar amplifiers and more.
