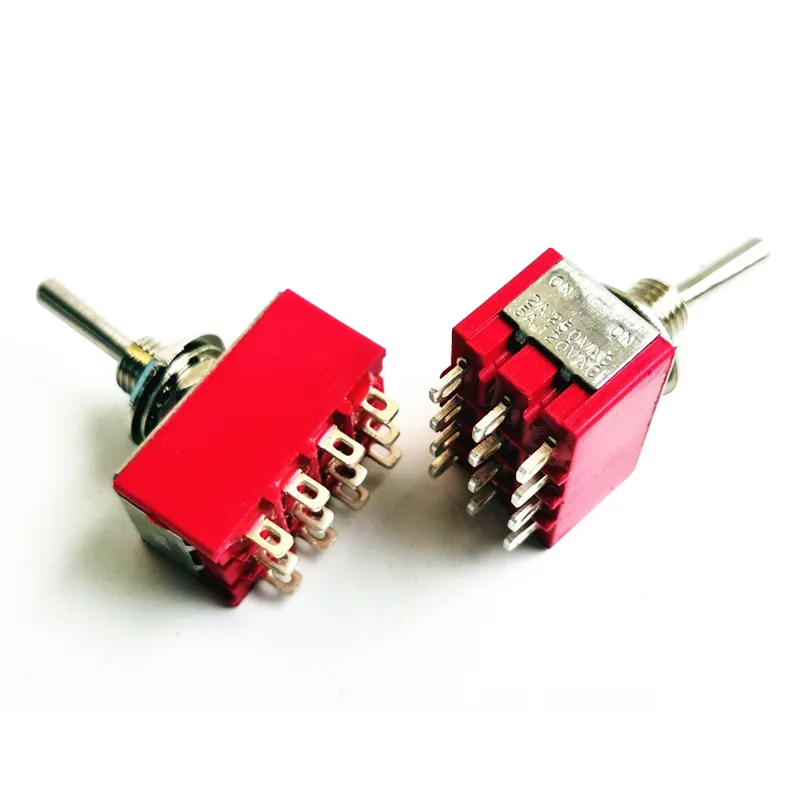

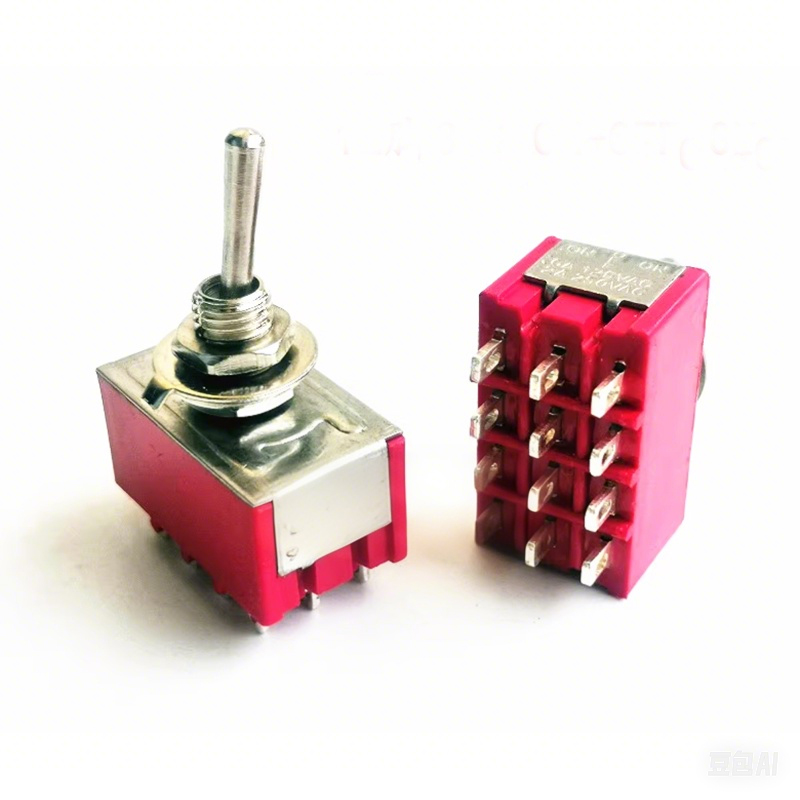

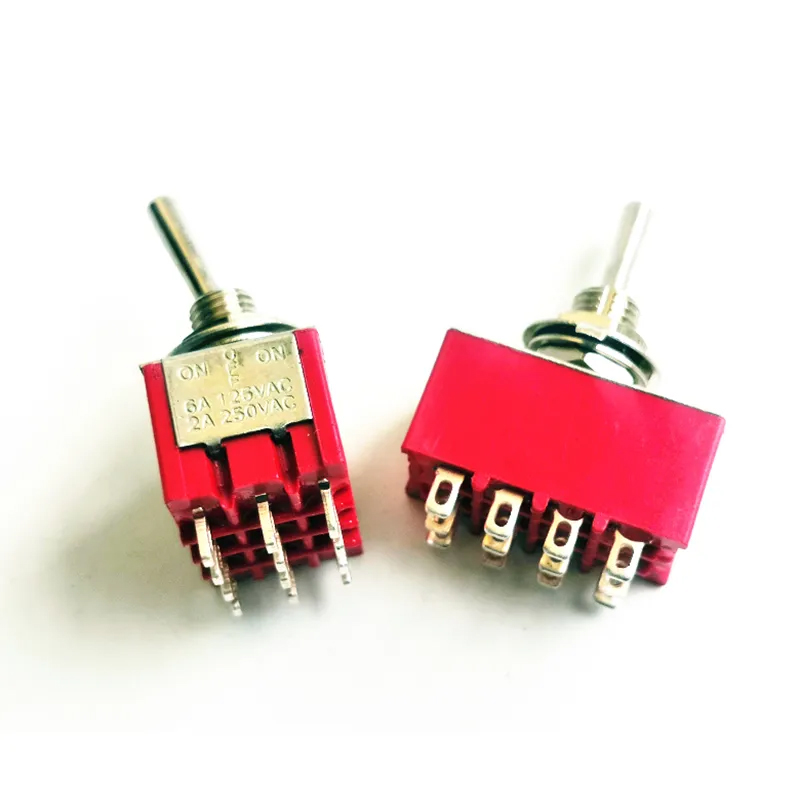

1PC Toggle Switch 12pin 3positions ON-OFF- ON 2A 250V 6A 120VAC
1PC Toggle Switch 12pin 3positions ON-OFF- ON 2A 250V 6A 120VAC
6MM toggle switch red button rocking switch toggle switch
Small toggle swing switch, 12 feet 3 levels
Operating life: more than 100,000 times
12-3 gear voltage and current: 6A125VAC/2A250VAC

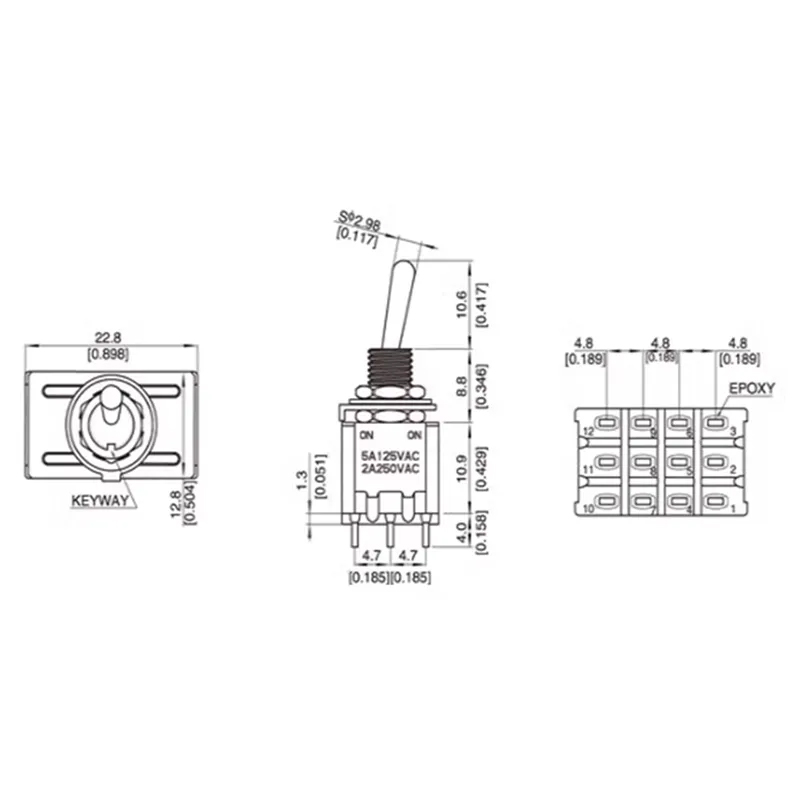

Screw position diameter; 5.7mm, opening 6mm, handle length 11mm, screw position length 8.8mm
The length of the red Bakelite bit is 22.5mm, the width is 12.6mm, and the height with feet is 15mm.
12P3T, 12-pin 3-speed
Parameters: 2A 250V 5A125V
6MM toggle switch red button rocking switch toggle switch
Small toggle swing switch, 12 feet 3 levels
Operating life: more than 100,000 times
12-3 gear voltage and current: 6A125VAC/2A250VAC
Screw position diameter; 5.7mm, opening 6mm, handle length 11mm, screw position length 8.8mm
The length of the red Bakelite bit is 22.5mm, the width is 12.6mm, and the height with feet is 15mm.
12P3T, 12-pin 3-speed
Parameters: 2A 250V 5A125V
