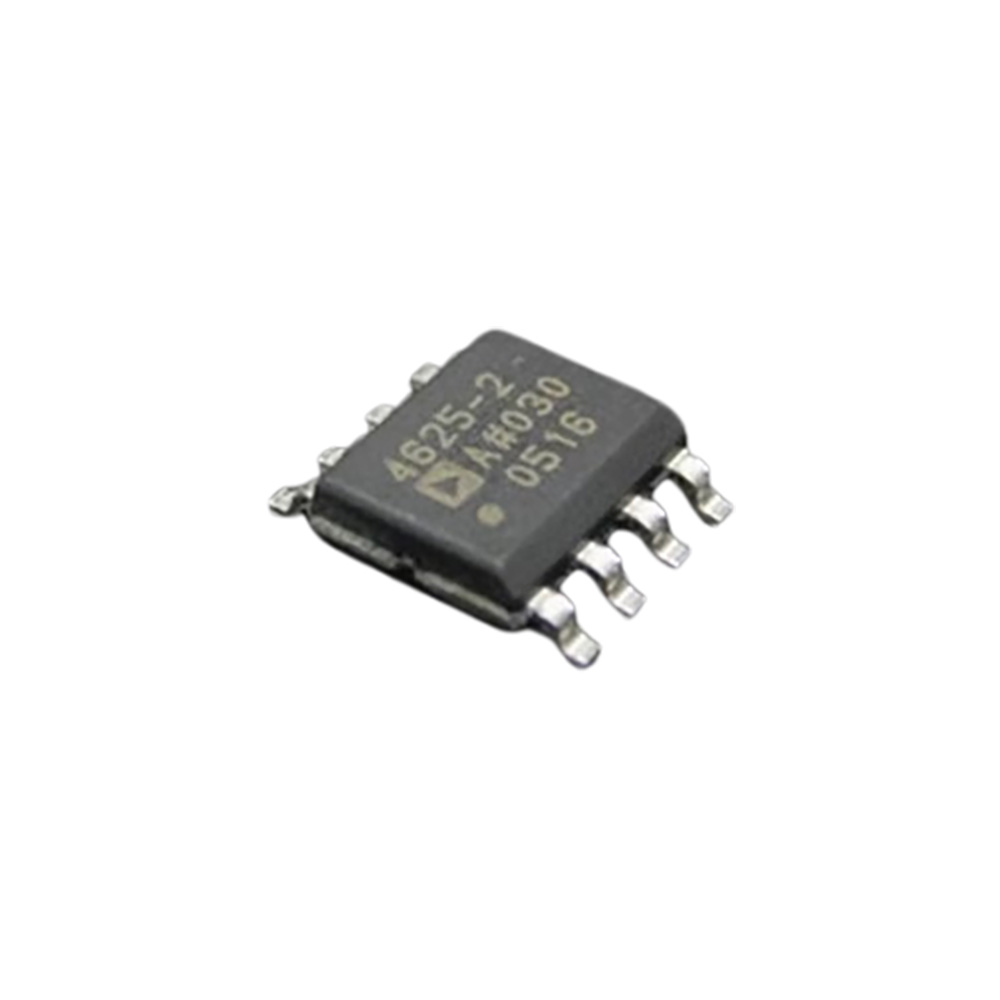

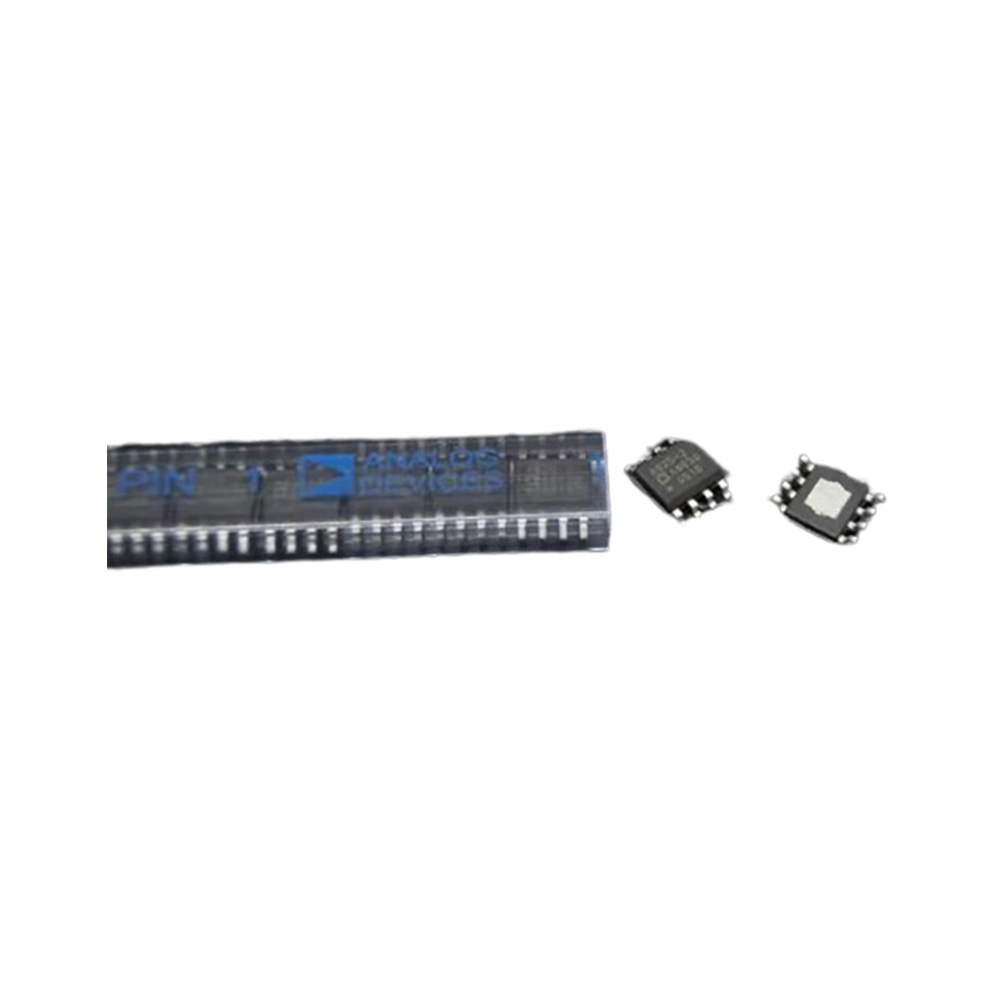

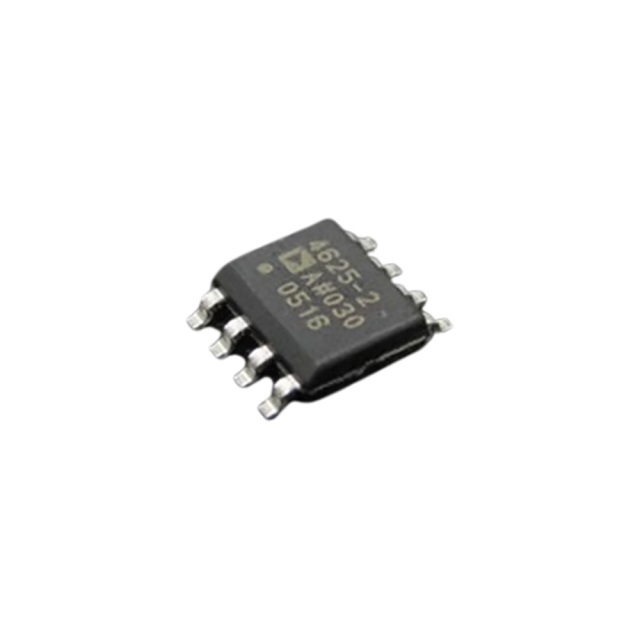

Genuine Analog Devices ADA4625-2ARDZ Precision Dual Op-Amp - JFET Input, 48V/μs Slew Rate (Original IC)
Genuine Analog Devices ADA4625-2ARDZ Precision Dual Op-Amp - JFET Input, 48V/μs Slew Rate (Original IC)
Model Structure
ADA4625-1: Single Channel | ADA4625-2: Dual Channel
Key Features & Benefits
| Parameter | Specification |
|---|---|
| Gain Bandwidth Product | 18 MHz (typ) |
| Slew Rate | 48 V/μs (typ) |
| Voltage Noise Density | 3.3 nV/√Hz @1kHz (typ) |
| 0.1-10Hz Noise | 0.15 μV p-p |
| Input Bias Current | ±15 pA @25°C (typ) |
| Input Offset Voltage | ±80 μV (max) @25°C |
| Offset Voltage Drift | ±1.2 μV/°C (max) -40°C to 85°C |
| Settling Time | 700 ns to 0.01% (typ) |
| Supply Voltage Range | Dual: ±2.5V to ±18V Single: 5V to 36V |
| Input Voltage Range | Extends to V- rail |
| Output Swing | Rail-to-Rail |
| Capacitive Load Drive | High Stability |
| Short-Circuit Current | ±46 mA |
| Phase Reversal | None |
| Stability | Unity-Gain Stable |
