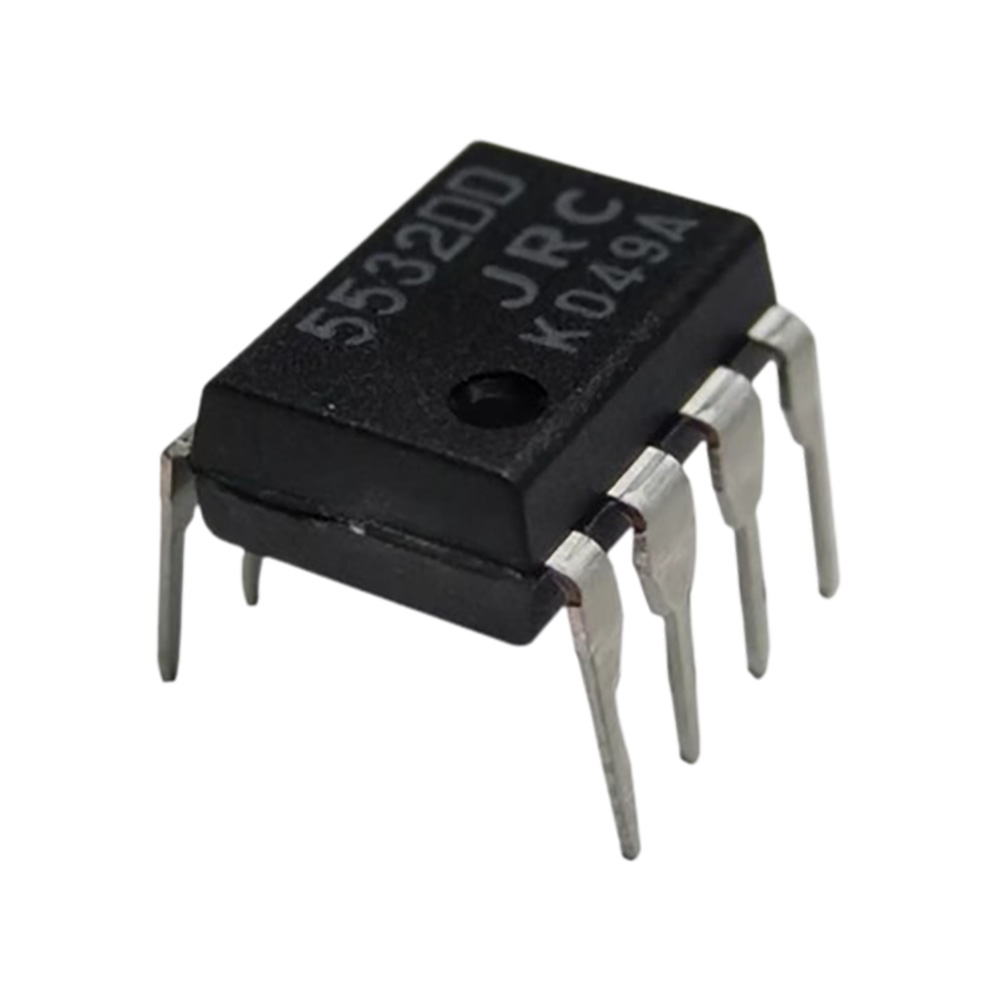

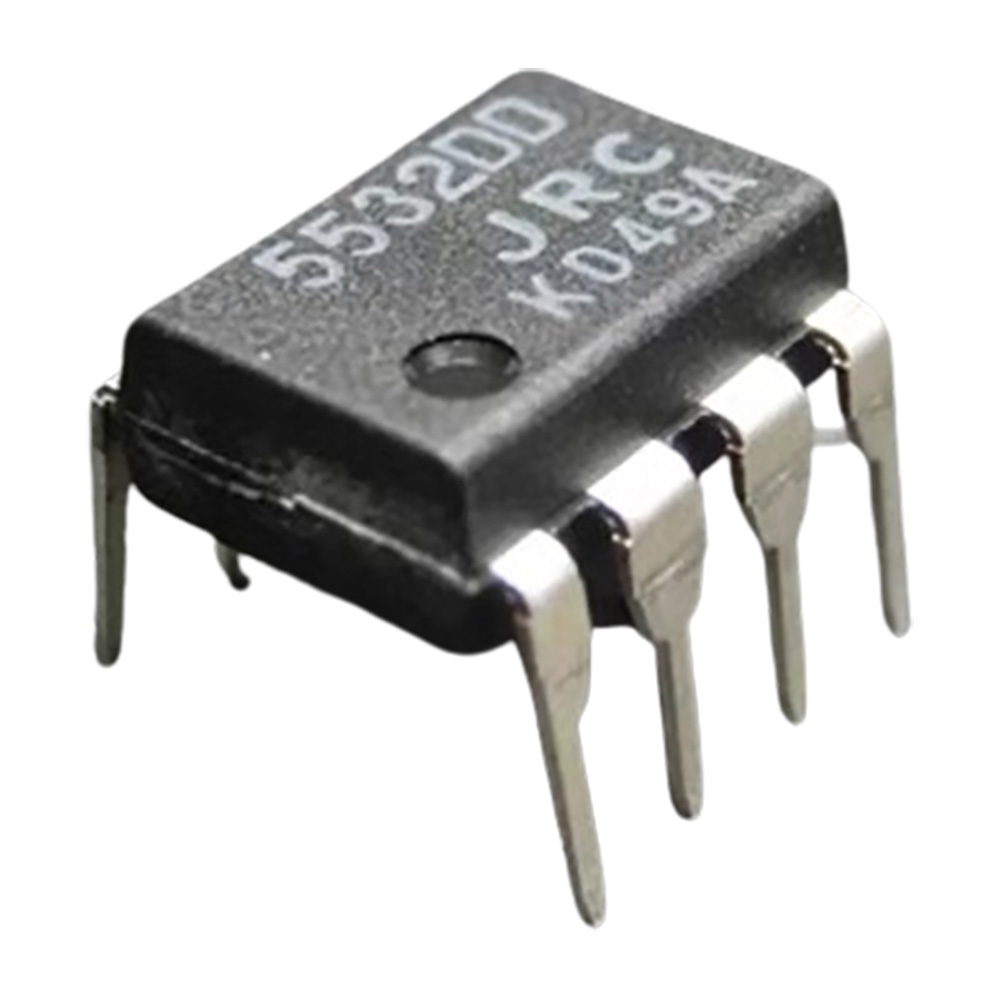

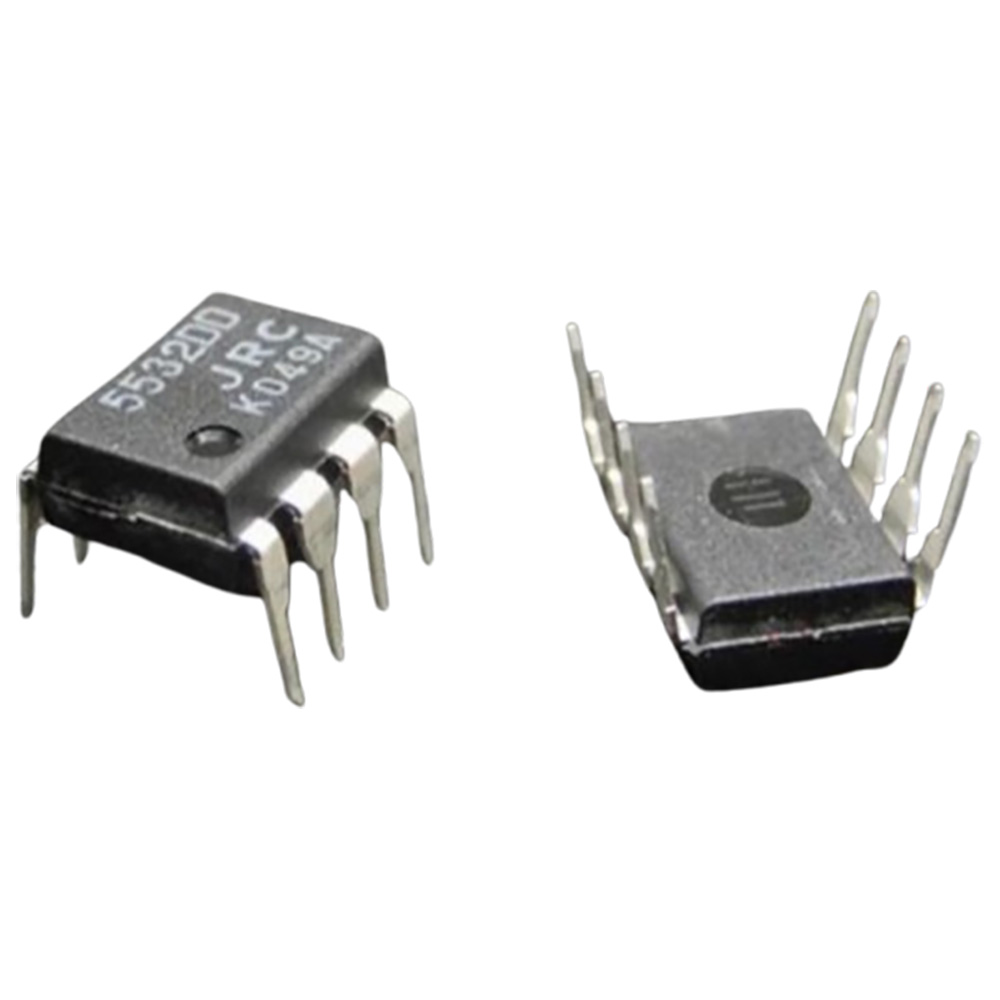

Genuine JRC NJM5532DD Precision Dual Op-Amp - DIP-8 Upgrade for NE5532 (Made in Japan)

Name: Genuine JRC NJM5532DD Precision Dual Op-Amp - DIP-8 Upgrade for NE5532 (Made in Japan)
Brand: www.shuguangpsvane.com
SKU: 1892
Price: 9.99 USD
Availability: InStock

Genuine JRC NJM5532DD Precision Dual Op-Amp - DIP-8 Upgrade for NE5532 (Made in Japan)

Warranty : 1 year
Price is for 1 PC.
Condition: original and new
if you need more, and matched, please contact us

0.0 (0 Reviews)

~~$269.00~~ $9.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Genuine JRC NJM5532DD Precision Dual Op-Amp - DIP-8 Upgrade for NE5532 (Made in Japan)

Warranty : 1 year
Price is for 1 PC.
Condition: original and new
if you need more, and matched, please contact us

The JRC5532DD, developed by Japan Radio Co., is a precision audio dual op-amp engineered as an enhanced successor to the legendary NE5532. It resolves the original's limitations in bass/treble extension and flabby low-end control while preserving its signature sweet midrange, delivering comprehensive frequency response and superior low-voltage performance rivaling OPA2604 – all at exceptional value.

Extensively adopted by pro-audio leader M-Audio in their interfaces, this chip's exceptional musicality is industry-proven.

As an upgrade to JRC5532D, the NJM5532DD achieves:

Higher precision & lower noise
Audibly superior soundstage resolution
Dual-monolithic construction (denoted by "DD") for matched channel performance

Parameter	Specification
Brand	New Japan Radio (JRC)
Origin	Japan
Model	NJM5532DD Low-Noise Precision Dual Op-Amp
Package	DIP-8 (Plastic Dual In-line)
Operating Voltage	±3.0V to ±20.0V
Slew Rate	8 V/μs
Input Noise Density	10 nV/√Hz
Gain Bandwidth	10 MHz
