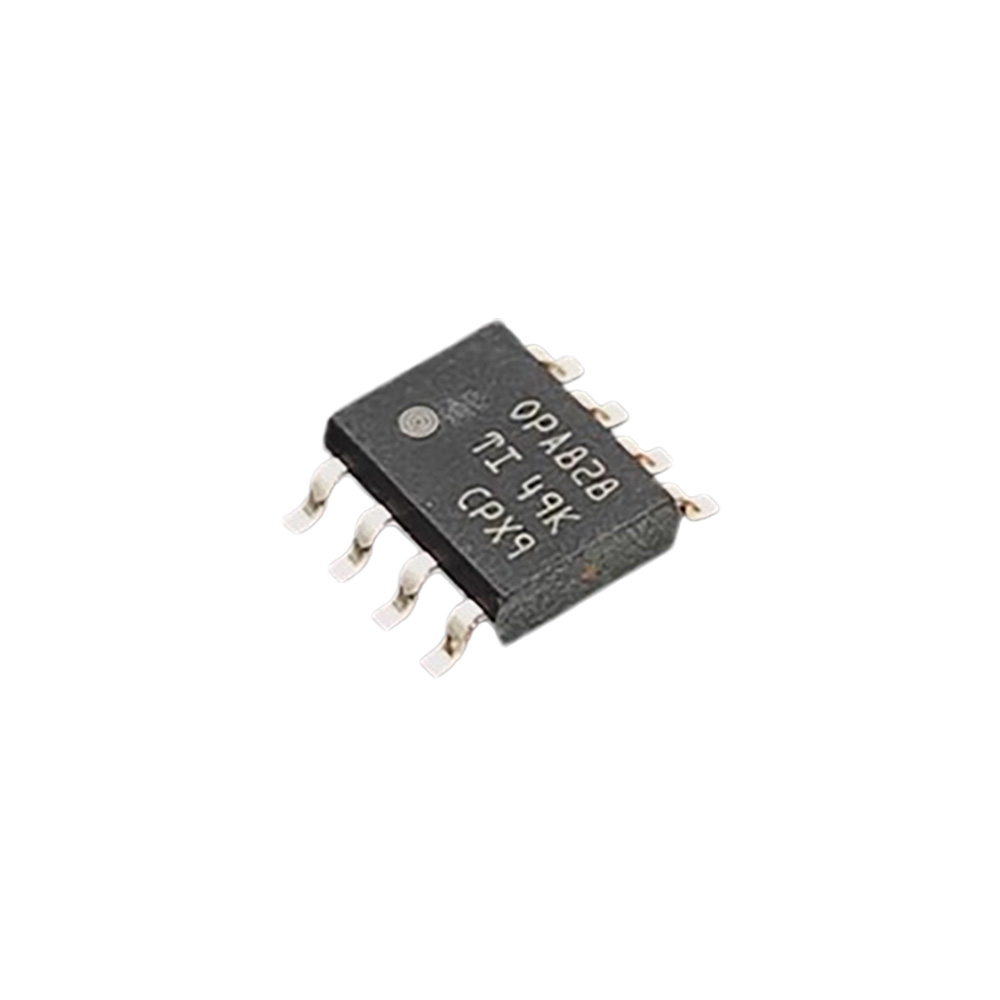

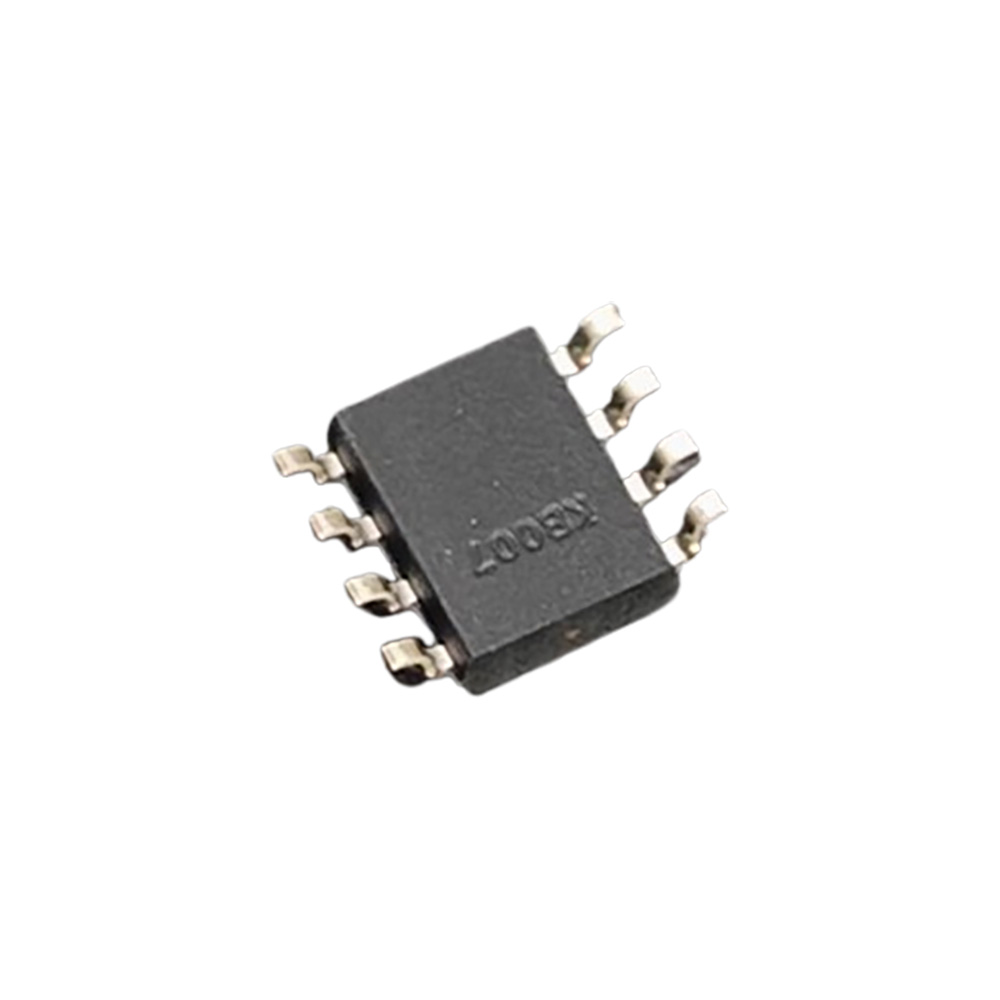

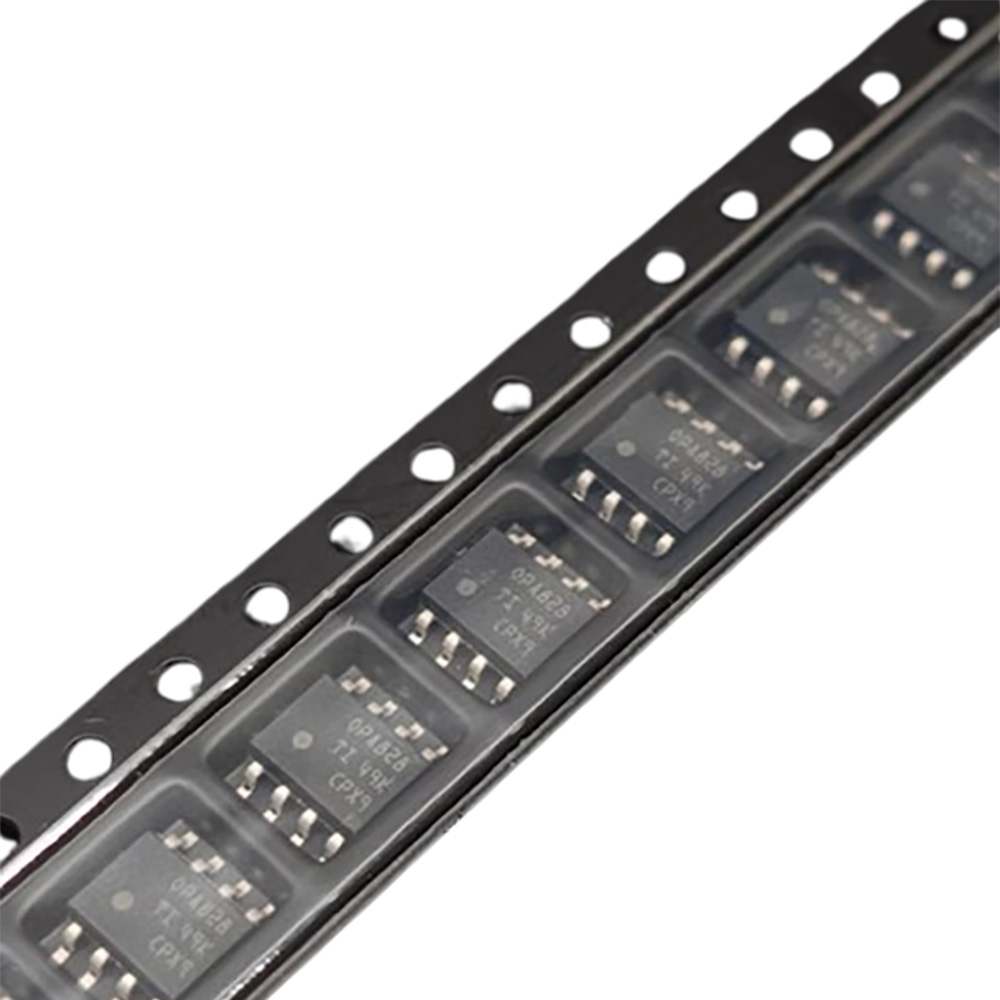

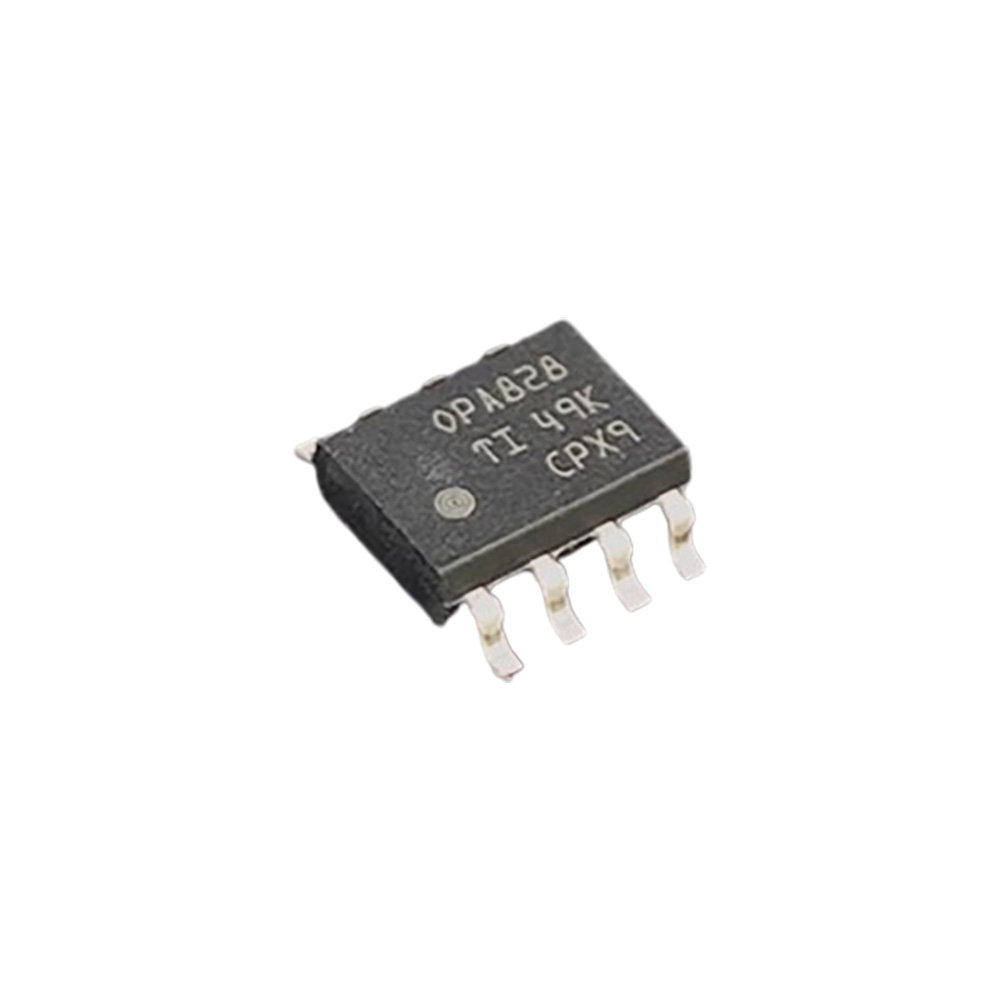

Genuine Texas Instruments OPA828IDR High-Speed Op-Amp - 150V/μs Slew Rate, 4nV/√Hz Noise, SOIC-8
Genuine Texas Instruments OPA828IDR High-Speed Op-Amp - 150V/μs Slew Rate, 4nV/√Hz Noise, SOIC-8
The OPA828IDR is a 36V, RRO (Rail-to-Rail Output), JFET-input monolithic op-amp delivering ultra-high speed (45MHz GBW) with precision DC performance.
| Parameter | Specification |
|---|---|
| Voltage Noise Density | 4nV/√Hz @1kHz |
| 0.1-10Hz Noise | 60nV RMS |
| Input Bias Current | 1pA |
| Input Offset Voltage | 50μV |
| Offset Voltage Drift | 0.45μV/°C |
| Gain Bandwidth Product | 45MHz |
| Slew Rate | 150V/μs |
| 14-bit Settling Time | 120ns |
| Supply Voltage Range | ±4V to ±18V |
| Mux-Friendly Inputs | <100nA input current step |
SOIC-8 (D) Package Advantages:
Automated Pick-and-Place Compatibility: MS-012AA standard
Extended Temp Range: -40°C to +125°C (per LMV8A test profile)
Moisture Sensitivity Level: MSL-3 (168hr floor life)
