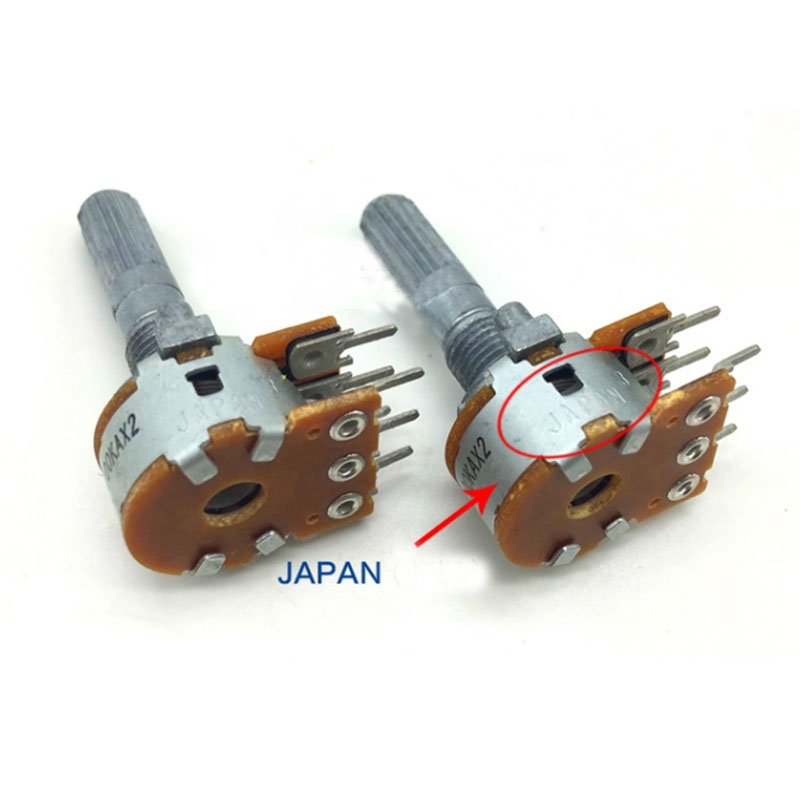

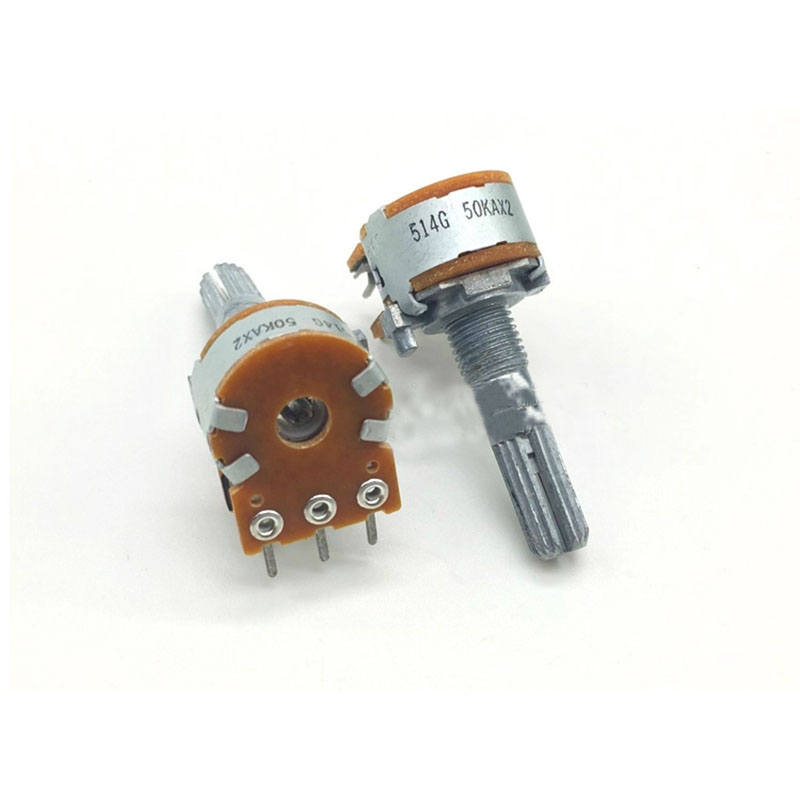

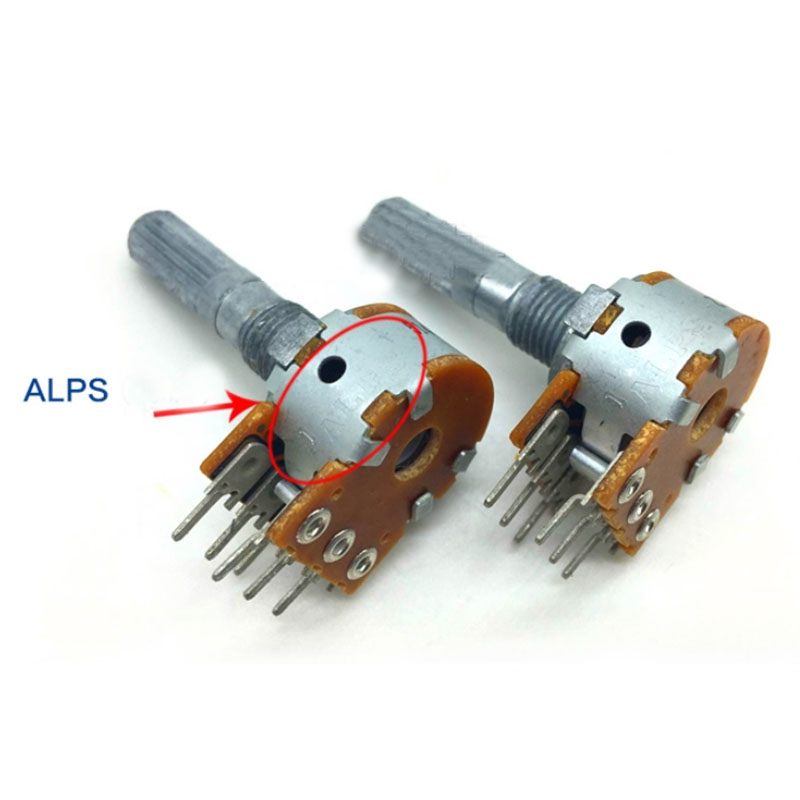

iPC ALPS Dual-Gang 6-Pin Type 16 RK163 A50K Potentiometer for Hi-Fi Audio Amplifier Volume Control

iPC ALPS Dual-Gang 6-Pin Type 16  RK163 A50K Potentiometer for Hi-Fi Audio Amplifier Volume Control

Brand:   ALPS
Origin: Japan
Model: RK163 Series Dual-Gang
Resistance Values: A50K, A100K
Specifications: Spline Shaft
Shaft Length (including threads): 25mm
Shaft Diameter: 6mm
Mounting Hole Diameter: 7mm
Pin Spacing: 5mm
Rated Power: 0.1W / 0.05W (at 15A)
Withstand Voltage: 500V AC for 1 minute
Operating Temperature Range: -10°C to +70°C
Maximum Voltage: 150V AC / 5V DC
Condition: Genuine New Imported
Operational Life: 15,000 cycles
Rotation Angle: 300° ±3°
Total Resistance Tolerance: ±20%
Channel Matching (for multi-gang volume control): -40dB to 0dB (3dB max)
