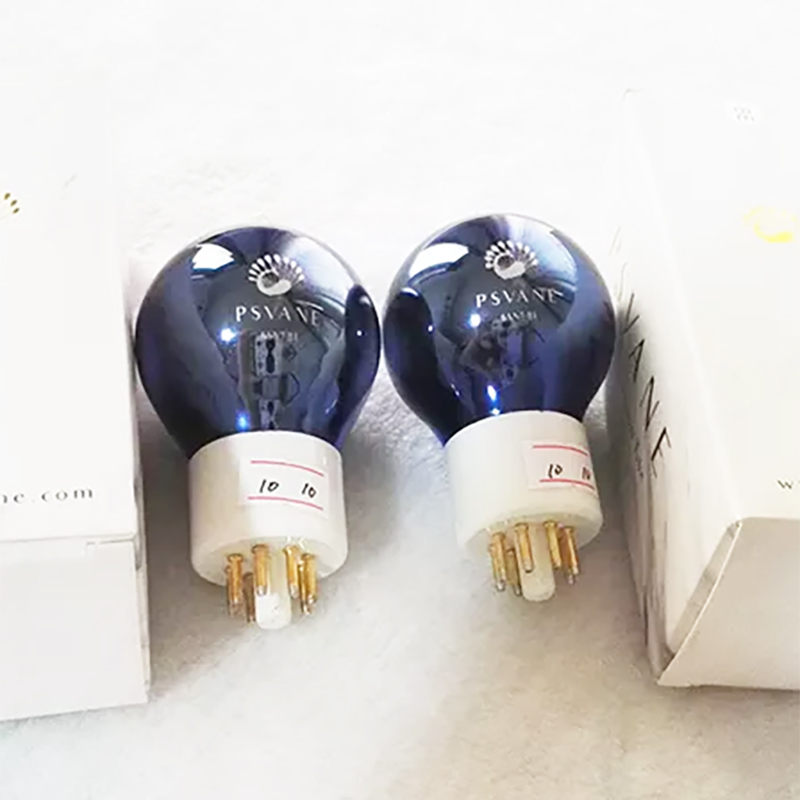

PSVANE 6SN7-BE HiFi AMP Vacuume Tube Replce 6SN7 CV181 6N8PA for tube amplifier

Name: PSVANE 6SN7-BE HiFi AMP Vacuume Tube Replce 6SN7 CV181 6N8PA for tube amplifier
Brand: www.shuguangpsvane.com
SKU: 389
Price: 56.99 USD
Availability: InStock

PSVANE 6SN7-BE HiFi AMP Vacuume Tube Replce 6SN7 CV181 6N8PA for tube amplifier

Warranty : 1 year
Price is for 1 PC tube.
Buy 2 pcs we will send 1 matched pair
if you need more, please contact us

0.0 (0 Reviews)

~~$99.00~~ $56.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

PSVANE 6SN7-BE HiFi AMP Vacuume Tube Replce 6SN7 CV181 6N8PA for tube amplifier

Warranty : 1 year
Price is for one pc tube
Buy 2 pcs we will send 1 matched pair,
if you need more, please contact us

All tube will be shippied by registered airmail by post office, please contact us if you need shipment by express such as DHL UPS Fedex.

Thank you!

6SN7-BE is double triode, used in voltage amplification circuit, Can be replaced directly by 6N8P and 6SN7GT.

Item specifics

Heater
UH………… 6.3 V

IH ………… 0.6 A

Static Parameter
Ua ………………………… 90 250 V

Ug………………………… 0 -8V

Ia ………………………… 10 9 mA

Gm………………………… 3 2.6 mA/V

Ri ………………………… 6.7 7.7 kΩ

μ ………………………… 20 20

Ia when Ug=-12.5V _ 1.3mA

Ug whenIa=-10uA - 7 -18V

Maximum Rating
class A1
Ua………………………… 450V
