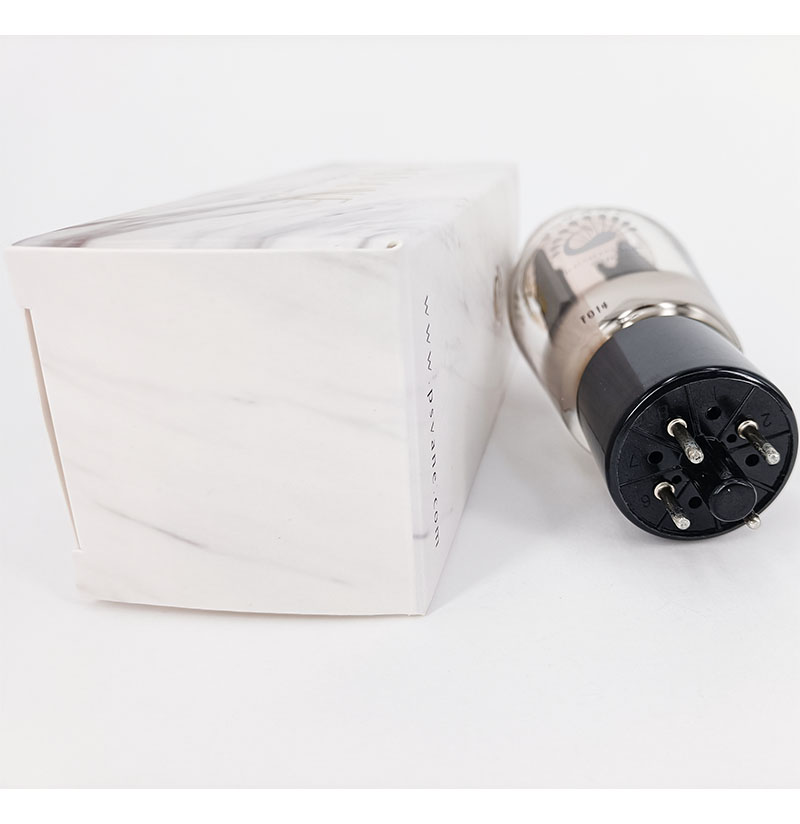

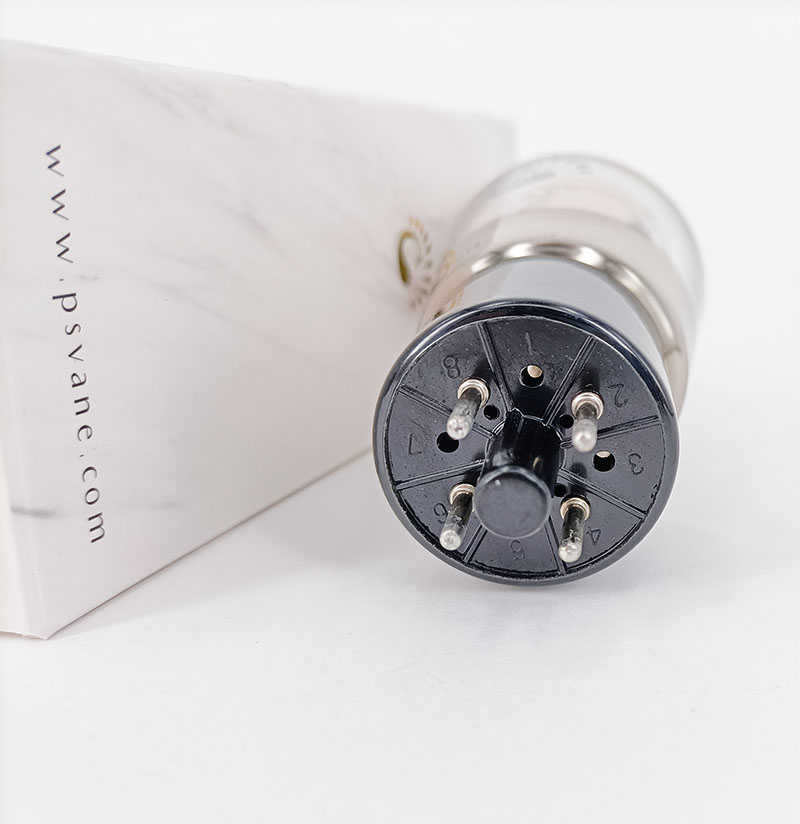

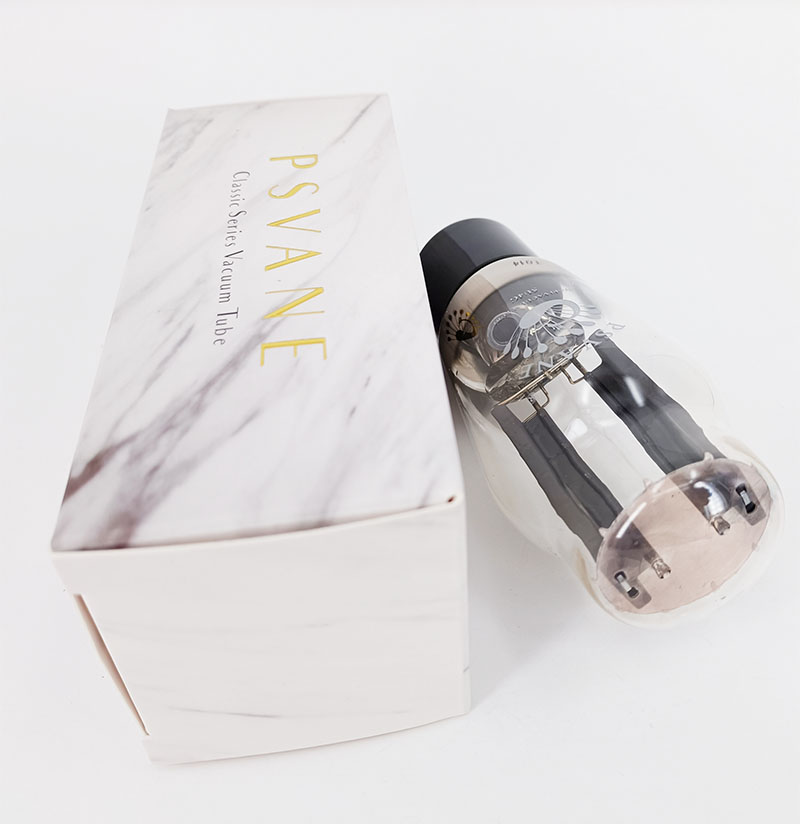

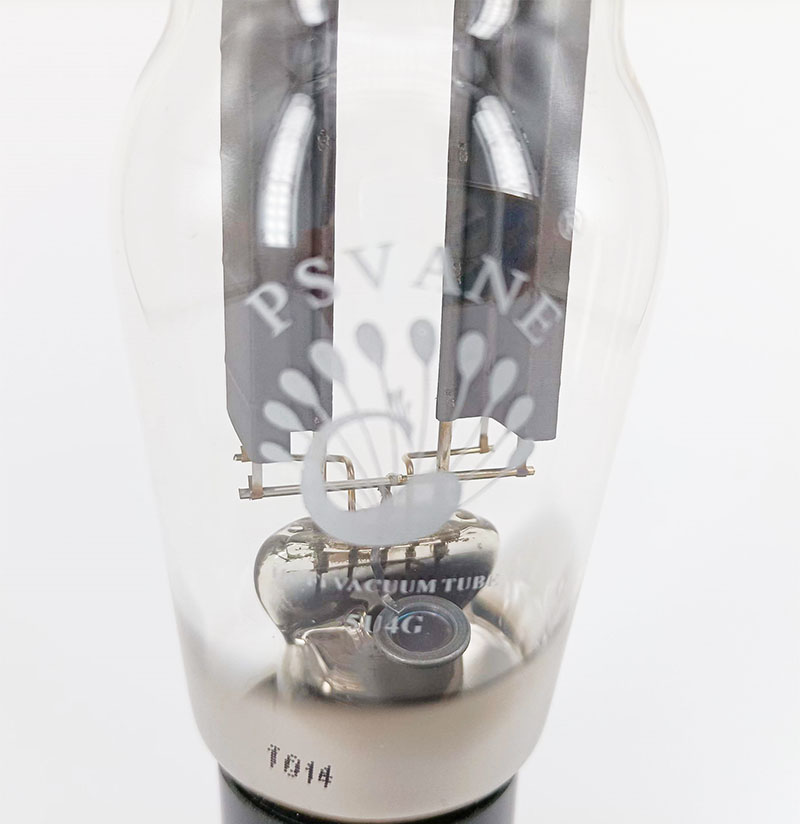

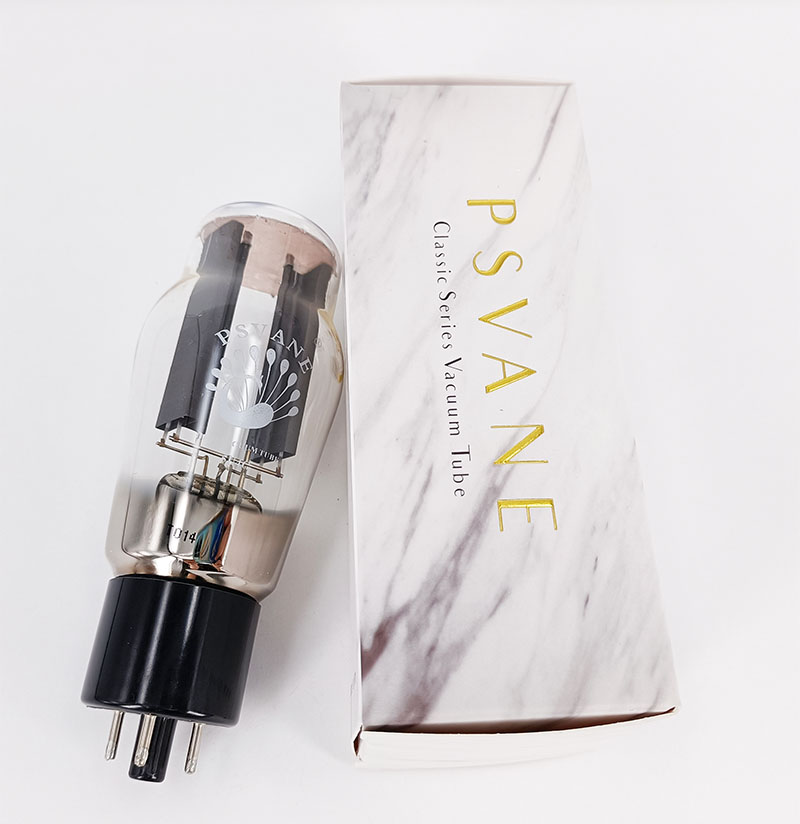

PSVANE Hifi 5U4G Vacuum Rectifier Tube Replace 5Z3 274B GZ34 for tube amplifier

Warranty : 1 year

Price is for one pc tube

Buy 2 pcs we will send 1 matched pair,
if you need more, please  contact us

All tube will be shippied by registered airmail by post office, please contact us if you need shipment by express such as DHL UPS Fedex.

Thank you!

5U4G is glass- shell eight- feet directly heated full-wave rectifier tube，5U4G is very similar with 274B  and 5Z3P, which can be replaced by each other.

Heater
Uf………………5V
If…………… 3A

Maximum Rating
anode inverse peak voltage……………1550V
anode peak current        ………675mA

Recommend operating condition

Anode supply voltage             2×500V
Each arm impedance               75Ω
load impedance                   2000Ω
Filter capacitor                 4μF
Rectifier current                ≧230mA





Factory history and overview

Changsha Hengyang Electronics Co., Ltd. specializes in R & D and the sales of audio tubes. All the items have passed the ISO9000 Quality System Certification. In May 2011, Changsha Hengyang Electronics CO., LTD was founded;

In July 2011, the manufacturing base was established in Changsha;
In August 2011, PSVANE’s first tube----845 was rolled off;

In September 2011, PSVANE 845 series began to supply our products to some main tube amplifier enterprises at home and abroad.

In October 2011, Changsha Hengyang Electronics Co., Ltd. wholly owned acquisition of a famous tube production enterprise in southern China, which sent shock waves through the industry.

In November 2011, PSVANE HIFI series (300B, 2A3, EL34, KT88, 5881, 6SN7, 274B and so on) were officially rolled off.

In November 2011, the company got the ability to develop and produce three series that cover more than 50 types of tubes. The whole strength and production-marketing scale are among the world’s top four, which is unprecedented in the industry. The foreign media said that “the future of the world’s tubes is in China, and the future of Chinese tubes is in Hengyang”.

In November 2011, PSVANE Reproducing Classic Series came to the market overseas and caused a sensation.

In November 2011, PSVANE HIFI series fully entered to the retailing market aboard and well received by customers from the middle and low-end market because it has better sound, appearance, stability and cost performance than other brands.

In May 2014, Changsha Hengyang Electronics Co., Ltd entered into Jiahai Industrial Park， which means has turned into a new page.
