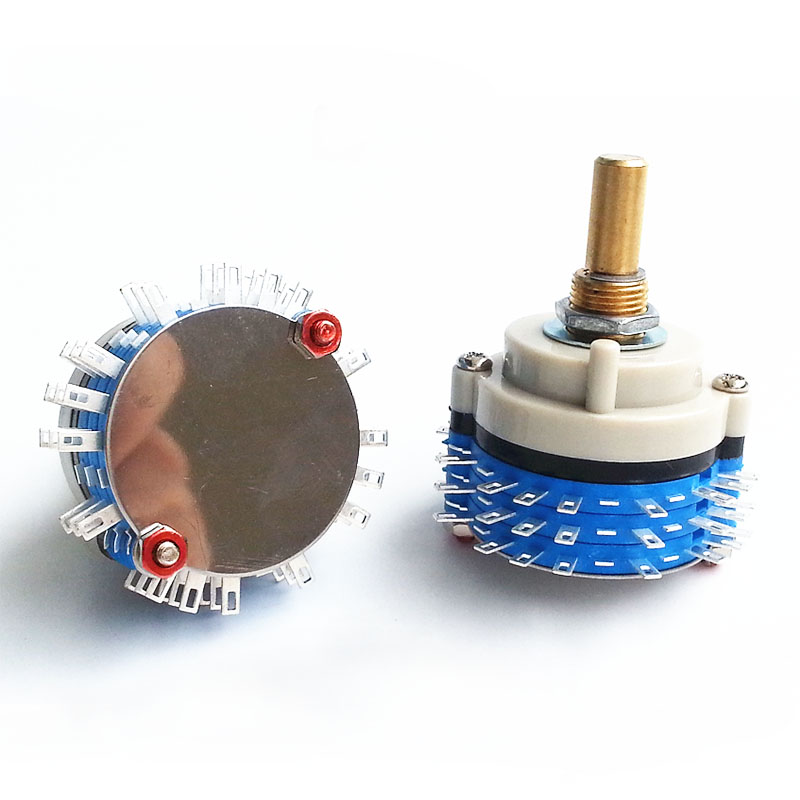

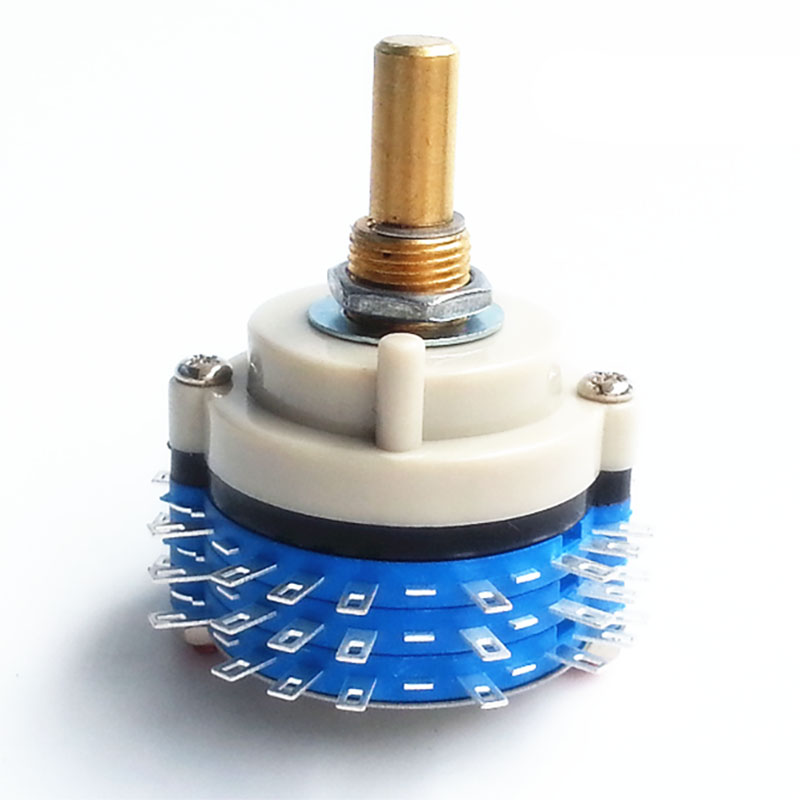

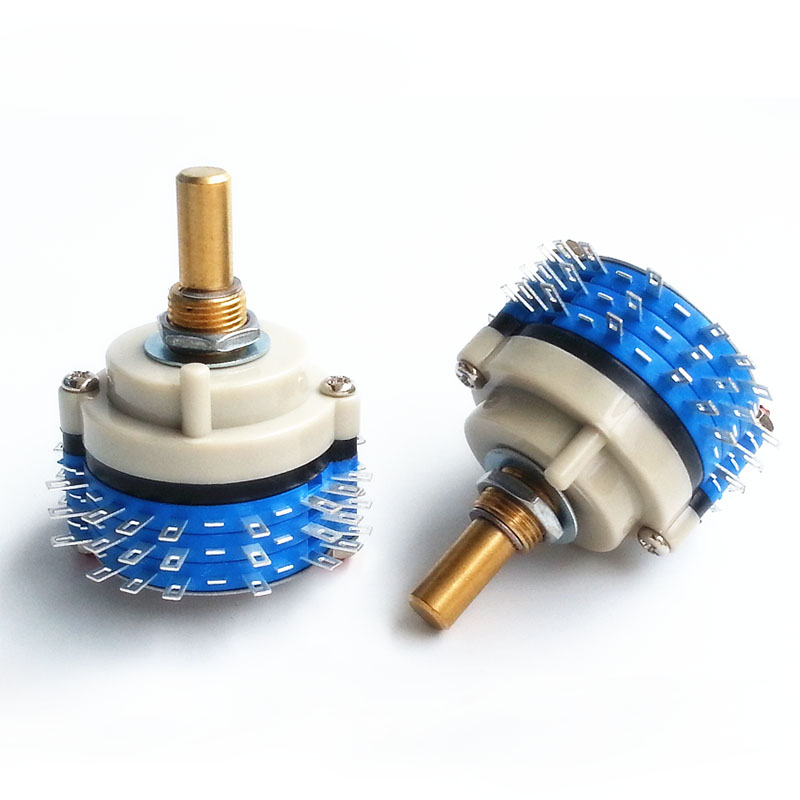

ROTARY SWITCH 3Pole 4position 3layers 3P4T 1pc for tube amplifier DIY

1PC 3 Layers  3 Pole 4position ROTARY SWITCH Attenuator Pot Potentiometer Volume Control DIY

Item Description:
Brand New Rotary switch:  3 Layer 3Pole 3positon

Environment temperature: -55-85℃

The Price is for 1PC/lot

Relative humidity： 93%， 40℃

Rotary angle: 15°

Work voltage: 150v

for max. voltage: 500v

work current: 0.3 A

contact resistance: 0.02 ohm

Insulator resistance: 1000 Mohm

Service life: 10,000 times

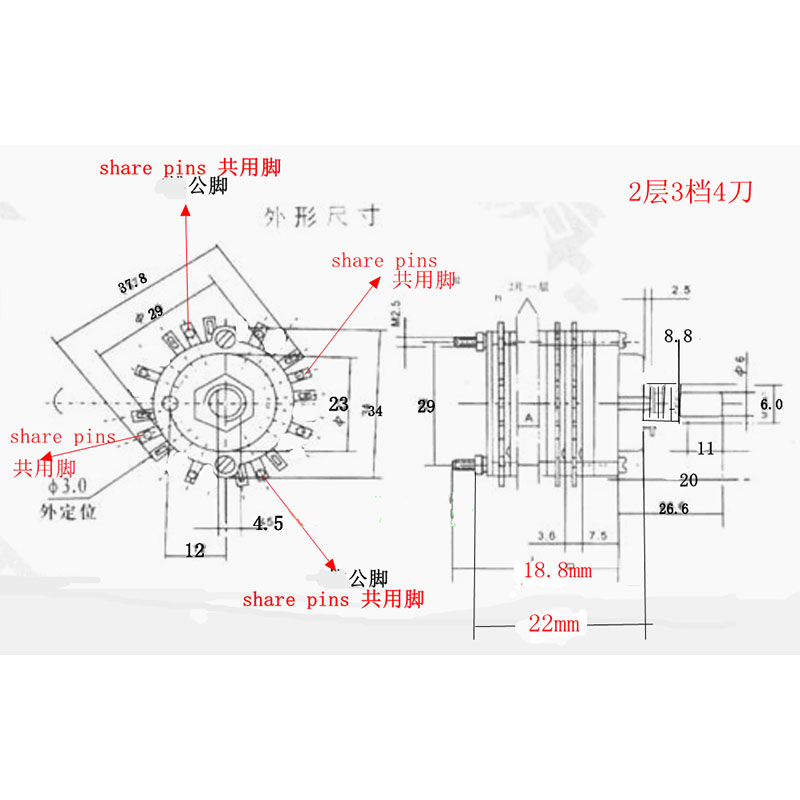

Diameter: 29mm

Diameter with pin: 32mm

Total height: 44mm

Shaft length: 20mm，Shaft Diameter: 6.0mm

Recommended for stereo pre-amp
